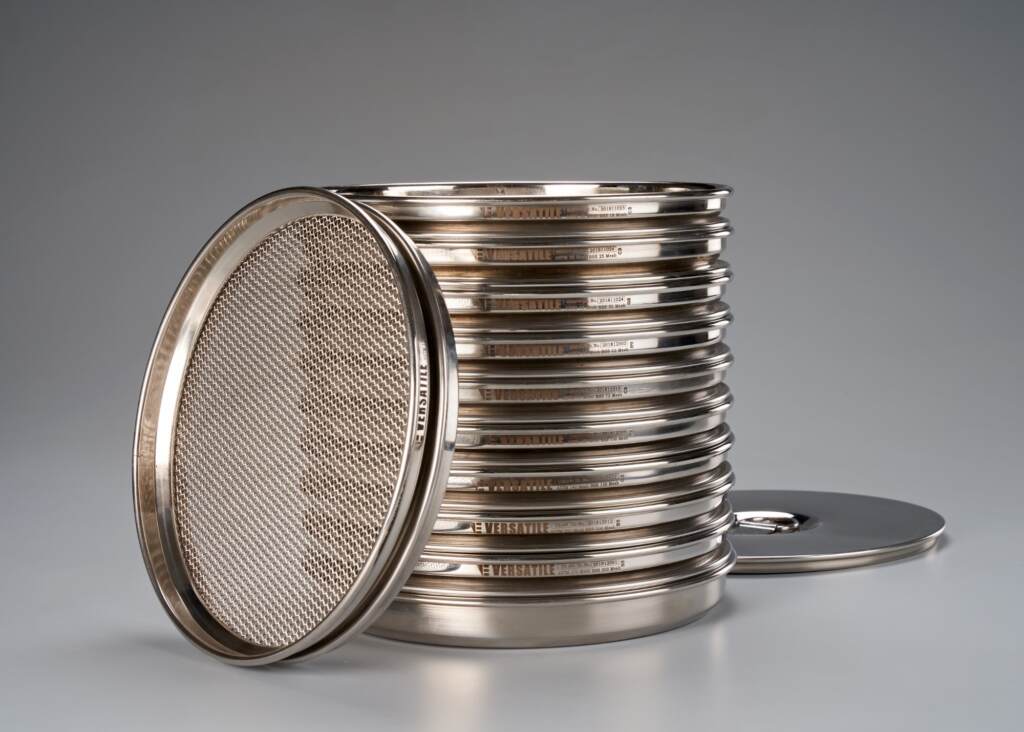

AFS Test Sieve Set, 8 inch Full Height (ISO 3310-1 / ASTM E11)
A complete ten sieve AFS set in full height 8 inch frames, for grain fineness number determination and sieve analysis. Supplied ready to use with lid, receiving pan, brush and a compliance certificate to ISO 3310-1 and ASTM E11.
Prefer email? Write to [email protected] and mention this model.
A complete AFS test sieve set for foundry sand grain fineness number determination and sieve analysis, supplied ready to use.
| Set contents | Ten test sieves: 1700, 850, 600, 425, 300, 212, 150, 106, 75 and 53 micron |
|---|---|
| Frame | 8 in (203 mm) diameter, full height |
| Material | Stainless steel frame and mesh, formed as one piece with no welding, brazing or filler |
| Standards | ISO 3310-1 and ASTM E11, compliance certificate supplied |
| Also supplied | Lid and receiving pan, 1 inch brush, compliance certificate |
| Dimensions | 200 x 200 x 575 mm (W x B x H), approximately 4.0 kg net |
| Shakers | Suits the Sieve Shaker VGH, VGH II, VGH III and VGH-IV |
Individual sieves are available separately as replacements.
More on these sieves: the full aperture range, inspection and certification, sieve analysis and the AFS grain fineness number.
Others in the sand lab.

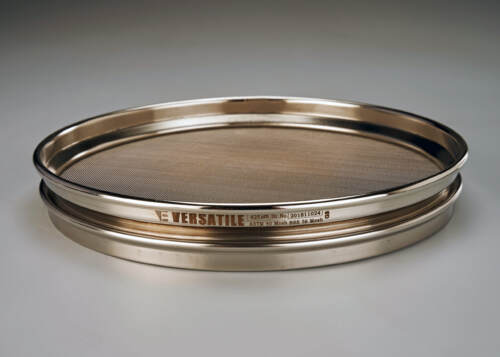

Test Sieve 425 Micron, 8 inch Half Height (ISO 3310-1 / ASTM E11)
