CORE HARDNESS TESTER VCH
Description

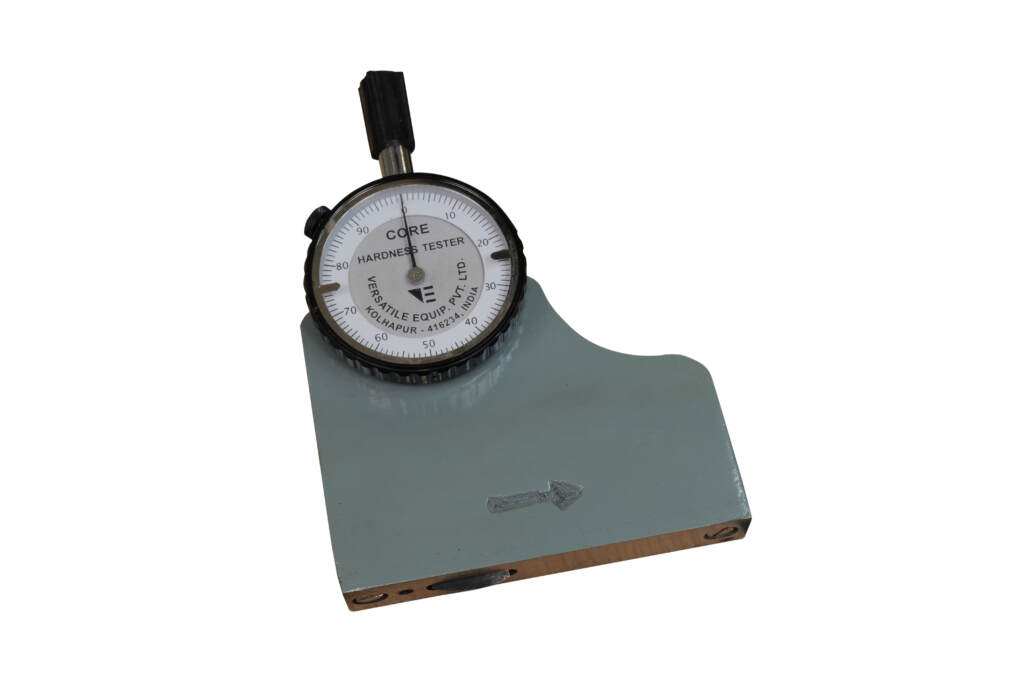

Core Hardness Tester VCH
The Versatile Core Hardness Tester VCH is a professional foundry tester for resin coated sand, hot box sand, cold box sand, no-bake sand, oil sand, co2 sand, used to find out the hardness of baked or dried cores made out of core sands, resin sands etc. It is engineered for accurate, repeatable sand testing on the lab bench and shop floor.
Application
To find out the hardness of baked or dried cores made out of core sands, resin sands etc. Employees scratch type test to check bonding and hardness of cores.
Key features
- Consists of Carbide tipped plough
- Dial indicator
- VSync web sync: log, store and trend test results in the cloud and view them from any browser
Technical specifications
| Sand types | Resin coated sand, Hot box sand, Cold box sand, No-bake Sand, Oil Sand, CO2 Sand |
|---|---|
| Measuring range | 0-100 Nos |
| Dimensions (W x D x H) | 115 x 40 x 165 mm |
| Weight | 1 kg |
| Power supply | 230 V AC, 50 Hz (please specify on order) |
Safety & care: Keep the instrument clean and away from dust ensure that all sticking sand is removed from the instrument before and after every test. Do not tamper with the setting and calibration.
Manufactured and serviced by Versatile – trusted by 9,000+ foundry customers worldwide since 1966. Contact us for a demonstration, the full testing procedure or a quotation.
