The Versatile Mould Strength Tester VMS is a professional foundry tester for green sand, used to find out the strength of the sand mould. Results sync to the cloud through VSync web sync.
MOULD STRENGTH TESTER VMS
Description

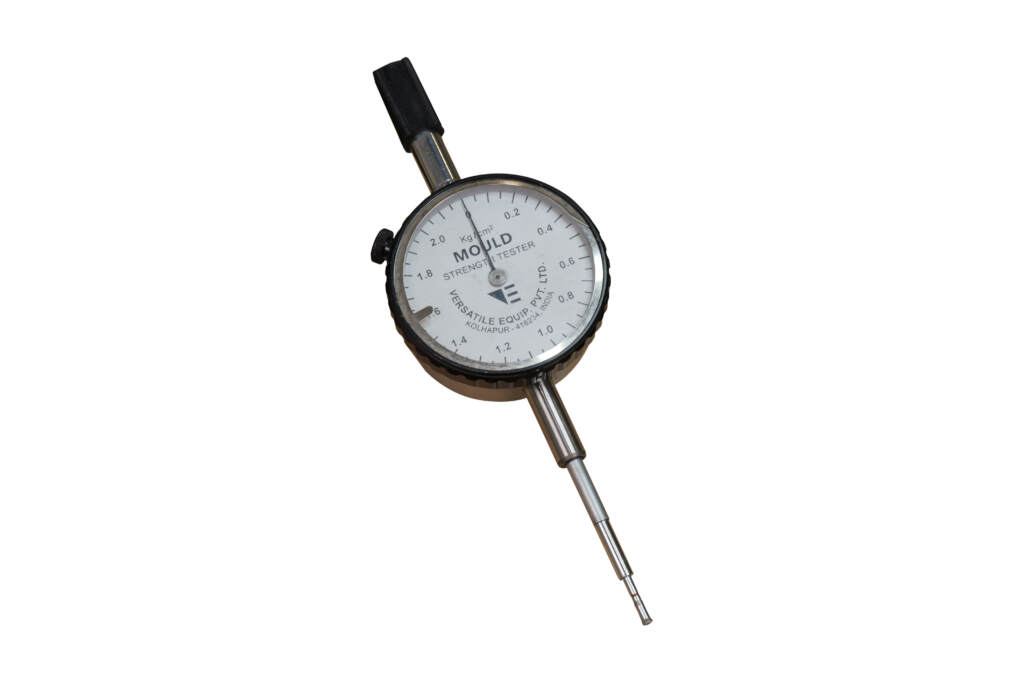

Mould Strength Tester VMS
The Versatile Mould Strength Tester VMS is a professional foundry tester for green sand, used to find out the strength of the sand mould. It is engineered for accurate, repeatable sand testing on the lab bench and shop floor.
Application
To find out the strength of the sand mould.
Key features
- Consists of Dial indicator with special tip to read Compression strength of molding sand on mould itself upto 2 kg/cm2
- VSync web sync: log, store and trend test results in the cloud and view them from any browser
Technical specifications
| Sand types | Green Sand |
|---|---|
| Measuring range | 0-2Kg/cm2 |
| Dimensions (W x D x H) | 110 x 40 x 165 mm |
| Weight | 0 kg |
| Power supply | 230 V AC, 50 Hz (please specify on order) |
Safety & care: Keep the instrument clean and away from dust. Ensure that all sticking sand is removed from the instrument before and after every test. Do not tamper with the setting and calibration.
Manufactured and serviced by Versatile – trusted by 9,000+ foundry customers worldwide since 1966. Contact us for a demonstration, the full testing procedure or a quotation.
