UNIVERSAL STRENGTH MACHINE MODEL VUD III
Description

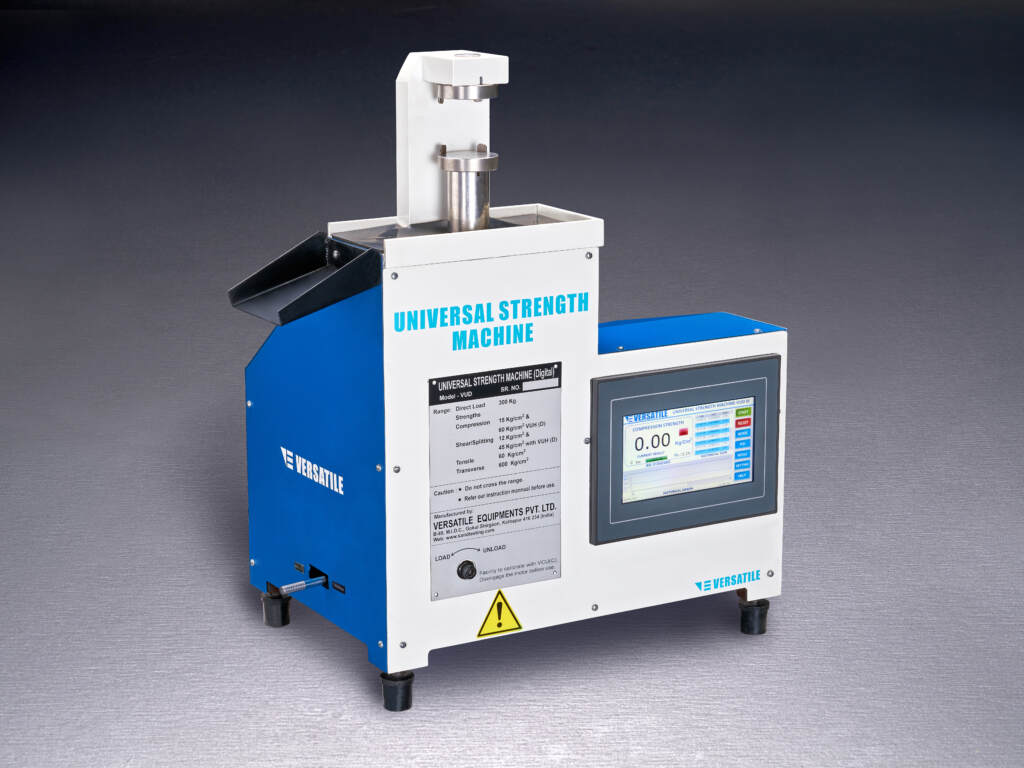

Universal Strength Machine Model VUD III
The Versatile Universal Strength Machine Model VUD III is a professional foundry testing machine for green sand, hot box sand, cold box sand, resin coated sand, no-bake sand, oil sand, co2 sand. It is engineered for accurate, repeatable sand testing on the lab bench and shop floor.
Application
The Equipment is used to determine various strengths, such as compression, shear, tensile, transverse and deformation, of foundry sand directly or with help of attachments. May Require Pneumatic air supply of 6 Kg/cm2 depending upon choice of variant. Computer interfacing is optional with Customized sand control software i.e VEsion Sand.
Key features
- Consists of loading frame
- Loading mechanism
- Force measuring mechanism
- Facility to accommodate various accessories
- VSync web sync: log, store and trend test results in the cloud and view them from any browser
Technical specifications
| Sand types | Green Sand, Hot box sand, Cold box sand, Resin coated sand, No-bake Sand, Oil Sand, CO2 Sand |
|---|---|
| Measuring range | 1) Compression-15kg/cm2, 2) Shear -12 kg/cm2, 3) Tensile- 60 kg/cm2 4) Transverse-600 kg/cm2 5) Direct Load -300 kg. 6) With High dry attachment : Compression -60 kg/cm2 |
| Dimensions (W x D x H) | 550 x 330 x 610 mm |
| Weight | 40 kg |
| Power supply | 230 V AC, 50 Hz (please specify on order) |
Safety & care: Clean the equipment after use. Protect the Parts from rusting. Apply rust preventing oil when not in use. Take care of Hands; Do not insert under the plunger.
Manufactured and serviced by Versatile – trusted by 9,000+ foundry customers worldwide since 1966. Contact us for a demonstration, the full testing procedure or a quotation.
