WET TENSILE TESTER Model VWT I
Description

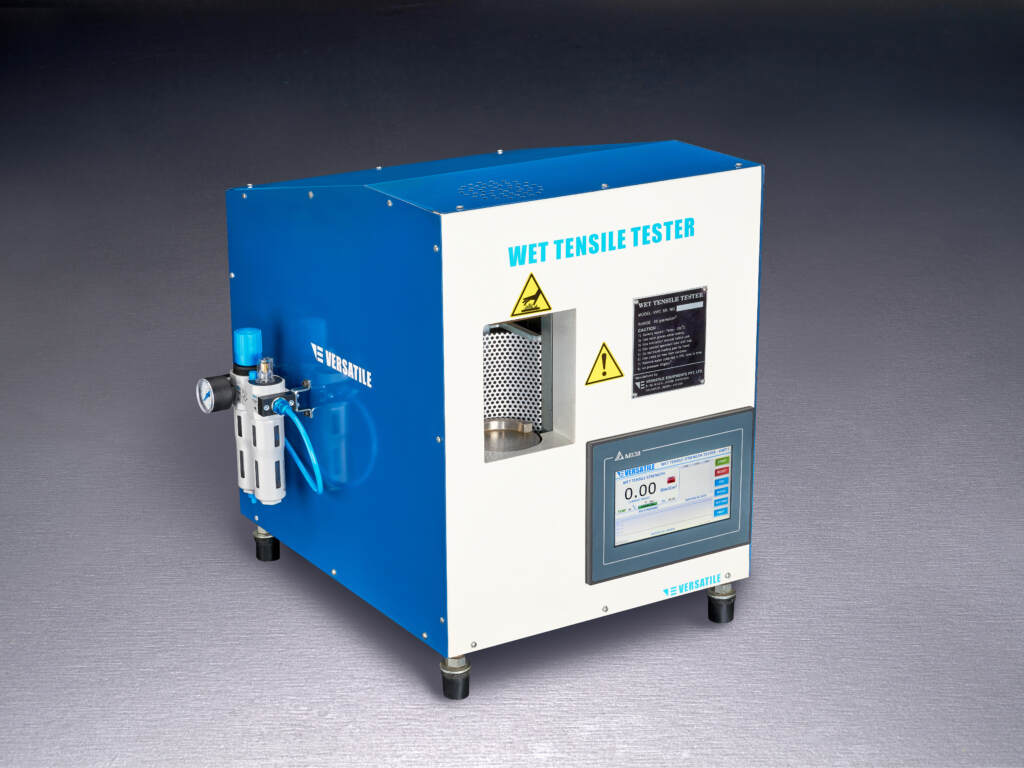

Wet Tensile Tester Model VWT I
The Versatile Wet Tensile Tester Model VWT I is a professional foundry tester for green sand. It is engineered for accurate, repeatable sand testing on the lab bench and shop floor.
Application
The Surface of clay bonded sand mould is strongly heated, for preset time. Some of the water evaporates and recondenses in the cooler part of the mould, and there is a considerable drop in strength at this portion Wet tensile tester measures this strength. In short, it measures tensile strength in condensation zone. Fully automatic cycle to determine Wet tensile strength. Computer interfacing with Customized software to acquire analyze & Plot results is available optionally on demand. Selectable unit i.e. g/cm2 OR N/mm2.
Key features
- It consists of loading frame
- Loading mechanism
- Force measuring mechanism
- Controlled heater to heat the specimen up to 300 o C
- VSync web sync: log, store and trend test results in the cloud and view them from any browser
Technical specifications
| Sand types | Green Sand |
|---|---|
| Measuring range | 0 to 60 gms/cm2 |
| Dimensions (W x D x H) | 305 x 470 x 550 mm |
| Weight | 45 kg |
| Power supply | 230 V AC, 50 Hz (please specify on order) |
Safety & care: Burning Hazard Heater temperature 300 o C. Remove accumulated water from FRL unit time-to-time.
Manufactured and serviced by Versatile – trusted by 9,000+ foundry customers worldwide since 1966. Contact us for a demonstration, the full testing procedure or a quotation.
