Test Sieve 150 Micron, 8 inch Half Height (ISO 3310-1 / ASTM E11)
Compliance grade test sieve, 150 micron aperture, in an 8 inch (203 mm) half height stainless steel frame. Frame and woven mesh are formed as one piece, with no welding, soldering or filler. Supplied with a compliance certificate to ISO 3310-1 and ASTM E11. Also known as No. 100, 100 mesh.
Prefer email? Write to [email protected] and mention this model.
A compliance grade test sieve for particle size separation and sieve analysis, including grain fineness number determination on foundry sand. The 150 micron aperture is one of the ten used in a complete AFS nest.
| Aperture | 150 µm |
|---|---|
| Frame | 8 in (203 mm) diameter, half height |
| Material | Stainless steel frame and mesh |
| Construction | Formed as one piece, with no welding, soldering or filler |
| Standards | ISO 3310-1 and ASTM E11, compliance certificate supplied |
| Used for | Particle size analysis, grading and quality control; grain fineness number on foundry sand |

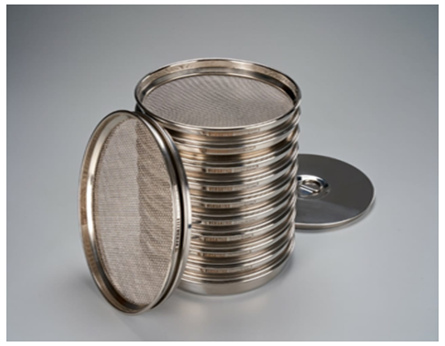

Available on its own as a replacement, or as part of a complete AFS sieve set supplied with lid, receiving pan and brush.
More on these sieves: the full aperture range, inspection and certification, sieve analysis and the AFS grain fineness number.
Handle with care. Dents in the frame and material left in the mesh both affect the result.
