The Versatile Hot Tensile Tester VHTD is a professional foundry tester for resin coated sand. Results sync to the cloud through VSync web sync.
Hot Tensile Tester VHTD
Description

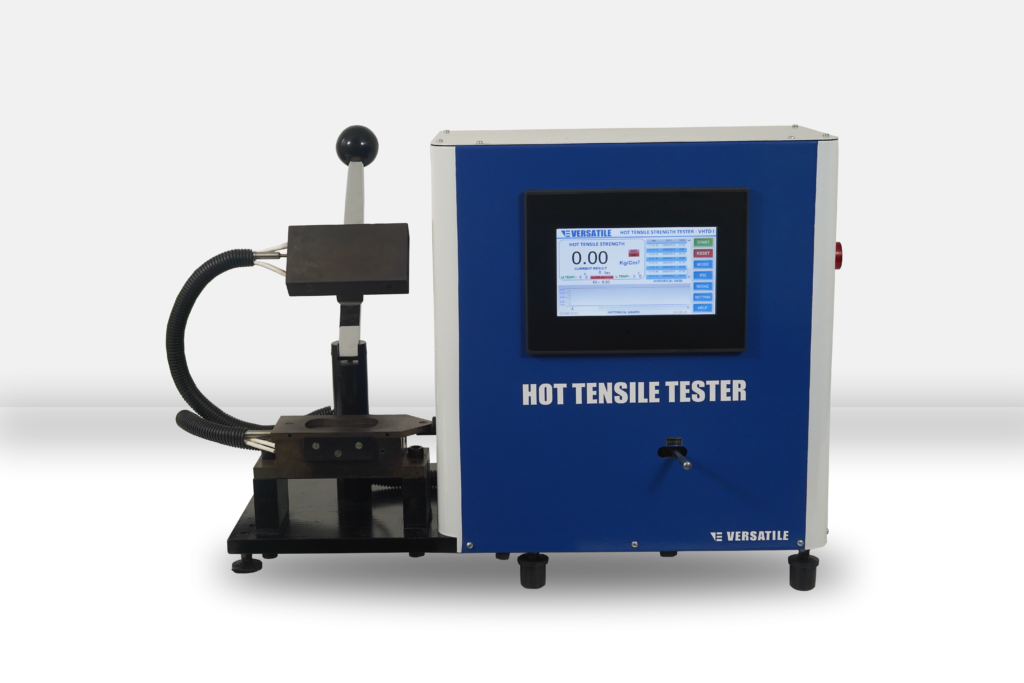

Hot Tensile Tester VHTD
The Versatile Hot Tensile Tester VHTD is a professional foundry tester for resin coated sand. It is engineered for accurate, repeatable sand testing on the lab bench and shop floor.
Application
The Hot shell strength of sand specimen measured when cured and still in hot condition, Hot Shell Tensile Tester (VHTA) has been designed as a complete unit for forming, curing and breaking the specimen in the same position. After manually filling the sand in the cavity the machine automatically breaks and shows strength reading after a default or user set dwell time. It can be used as a production control device in the shop to test batch of shell sand mix. Requires Pneumatic air supply of 6 Kg/cm2. Computer interfacing is optional with Customized sand control software i.e VEsion Sand.
Key features
- Consists of pair of hot plates controlled by digital temperature indicators
- Split mould
- Sand filler
- Strength measuring mechanism to read direct tensile strength up to 50 kg/cm2
- VSync web sync: log, store and trend test results in the cloud and view them from any browser
Technical specifications
| Sand types | Resin coated sand |
|---|---|
| Measuring range | 50 Kg/cm2 |
| Dimensions (W x D x H) | 620 x 330 x 450 mm |
| Weight | 34 kg |
| Power supply | 230 V AC, 50 Hz (please specify on order) |
Safety & care: Burning Hazard: Heater temperature 230oC .Do not touch when hot.
Manufactured and serviced by Versatile – trusted by 9,000+ foundry customers worldwide since 1966. Contact us for a demonstration, the full testing procedure or a quotation.
