The Versatile Shell Transverse Strength Tester (digital) is a professional foundry tester for resin coated sand, chemically bonded sands, used to Measure the Transverse Strength Of resin coated & chemically bonded Sands. (Size of specimen-1/4″x1″x4″). Results sync to the cloud through VSync web sync.
SHELL TRANSVERSE STRENGTH TESTER (DIGITAL)
Description

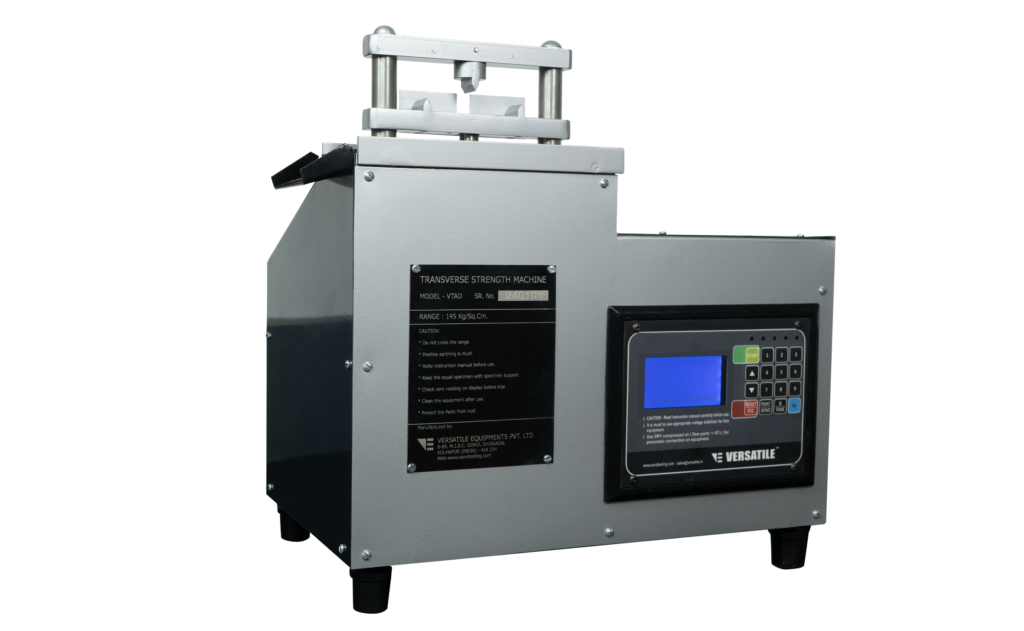

Shell Transverse Strength Tester (digital)
The Versatile Shell Transverse Strength Tester (digital) is a professional foundry tester for resin coated sand, chemically bonded sands, used to Measure the Transverse Strength Of resin coated & chemically bonded Sands. (Size of specimen-1/4″x1″x4″). It is engineered for accurate, repeatable sand testing on the lab bench and shop floor.
Application
To Measure the Transverse Strength Of resin coated & chemically bonded Sands. (Size of specimen-1/4″x1″x4″). Computer interfacing is optional with Customized sand control software i.e VEsion Sand.
Key features
- Kg/cm2 / PSI / N/cm2
- Suitable for Specimen size 1/4″x1″x4″
- VSync web sync: log, store and trend test results in the cloud and view them from any browser
Technical specifications
| Sand types | Resin coated sand, Chemically bonded Sands |
|---|---|
| Measuring range | 0 to 99 kg/cm2 |
| Dimensions (W x D x H) | 250 x 250 x 500 mm |
| Weight | 24 kg |
| Power supply | 230 V AC, 50 Hz (please specify on order) |
Safety & care: Do not apply oil when is use.
Manufactured and serviced by Versatile – trusted by 9,000+ foundry customers worldwide since 1966. Contact us for a demonstration, the full testing procedure or a quotation.
Related guides & resources
- Foundry sand testing equipment calibration
- VSync – live cloud monitoring stream every reading and check it against spec
Additional information
| Weight | 40 kg |
|---|---|
| Dimensions | 290 × 290 × 590 cm |
